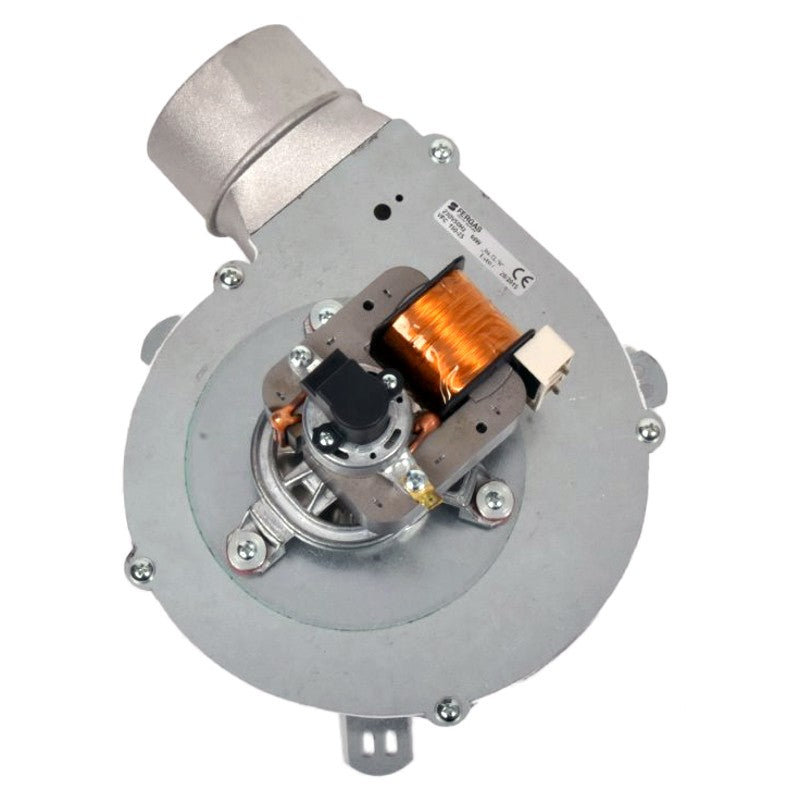

Smoke extractor/extractor fan for pellet stoves.
Provided with spiral, which output diameter is of 80 mm, and INOX steel rotor.
Designed to generate up-to-261Pa-pressures with a maximum airflow range of 173 m3/h.
Equipped of input nozzle for the smoke output tube and Hall Effect sensor (encoder).
Insulation class: H.
Working temperature: 70C
Generated pressure: up to 261 Pa.
Maximum available airflow rate: 173 m³/h
Rotations: up to 2590 RPM
Power: 48 Watt
Flange connector: 80 mm
Steel rotor diameter: 150 mm
With Hall Effect sensor.
